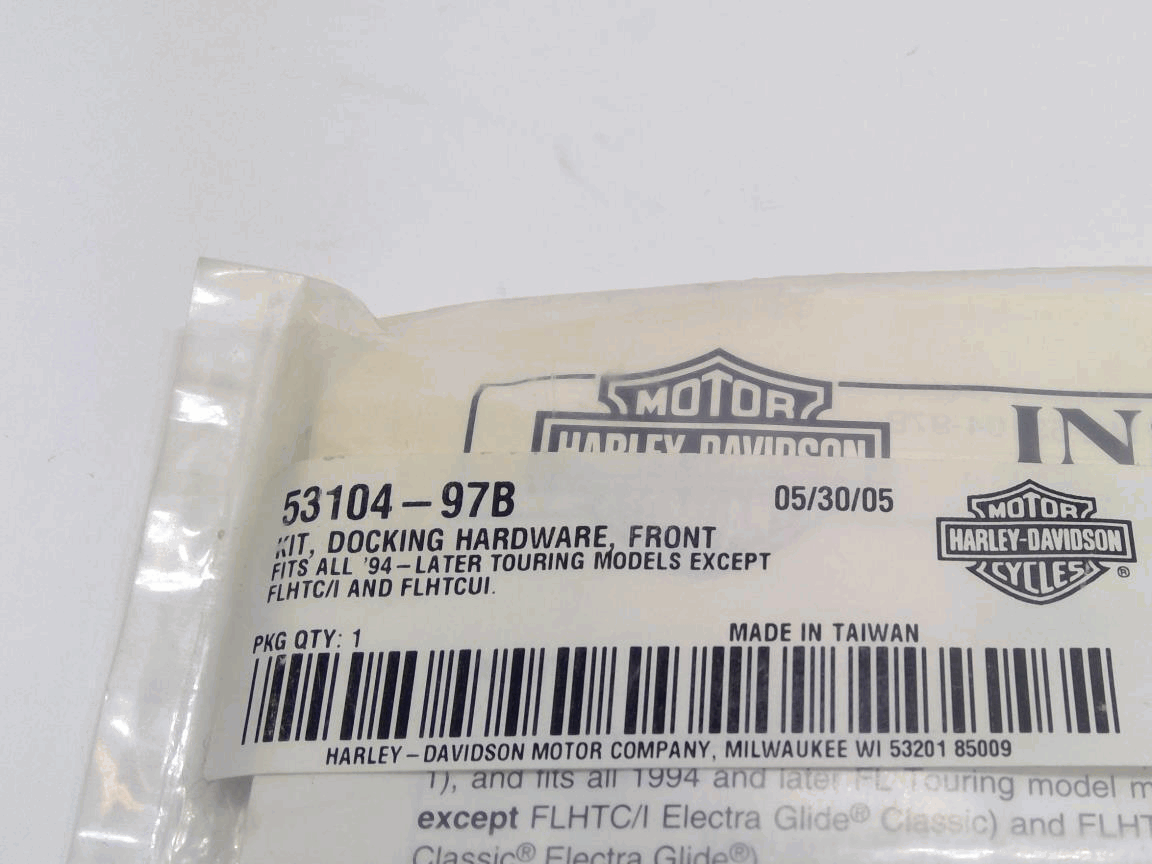

Fits all 1994-2007 Touring Models except FLHTC/I and FLHTCUI
This Detachable Docking Kit mounts in Position 2 (see Figure 1 ), and fits all 1997 and later FL Touring model motorcycles except FLHTC/I (Electra Glide® Classic) and FLHTCUI (Ultra Classic® Electra Glide).
For Models Using the Following Accessories:
-
Detachable Solo Tour-Pak® Rack 53260-02
-
Detachable Passenger Sissybar Upright 52805-97A (separate purchase of Kit 53660-05 is required)
-
Detachable Passenger Sissybar Upright 52933-97A
-
Detachable Passenger Sissybar Upright 52935-04
| 1. |
See Figure 2. Remove the existing Phillips screw (1) from the hole directly behind the upper shock absorber mounting bolt. |
| 2. |

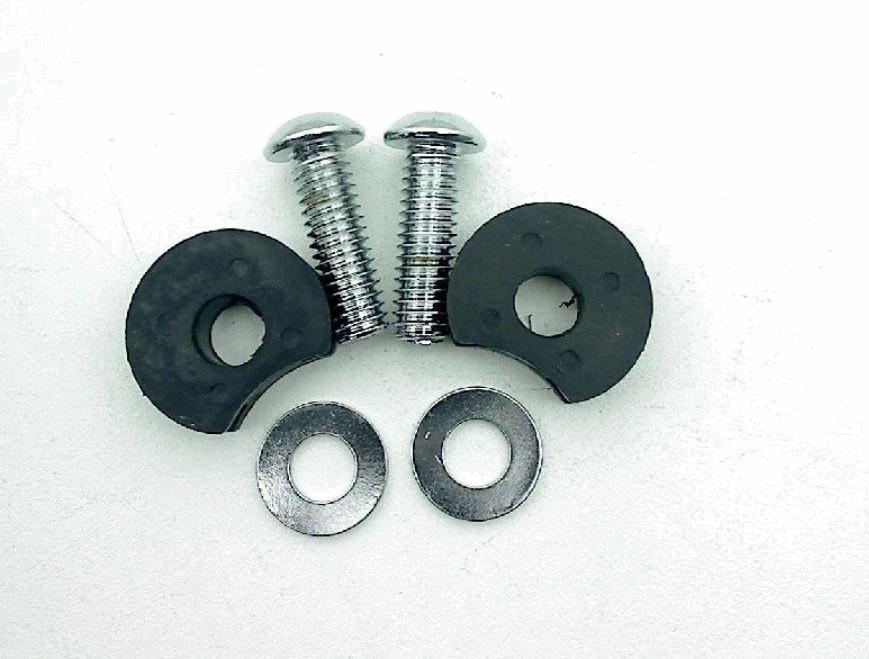

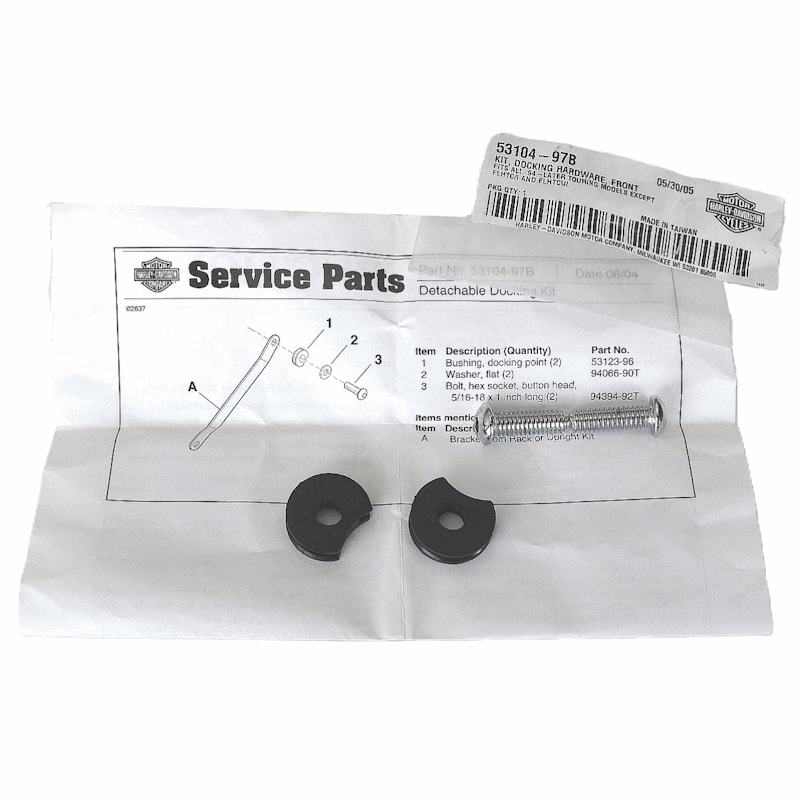

See Figure 4. Obtain a docking point bushing (1), bolt (3) and flat washer (2) from the kit. |
| 3. |
Place the flat washer over the threads of the screw, followed by the bushing. |
| 4. |
Insert the screw threads through the smaller hole in bracket 53805-99 (item A, part of the Solo Tour-Pak® Rack or Sissybar Upright Kit), and the chrome rear fender support cover. Thread the screw into the weld nut in the fender support. |
